Description
DESCRIPTION
with non slip soft grip handle
air exhaust through the handle

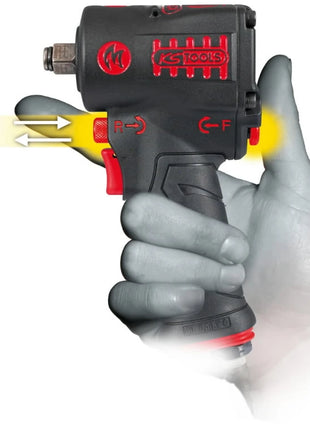

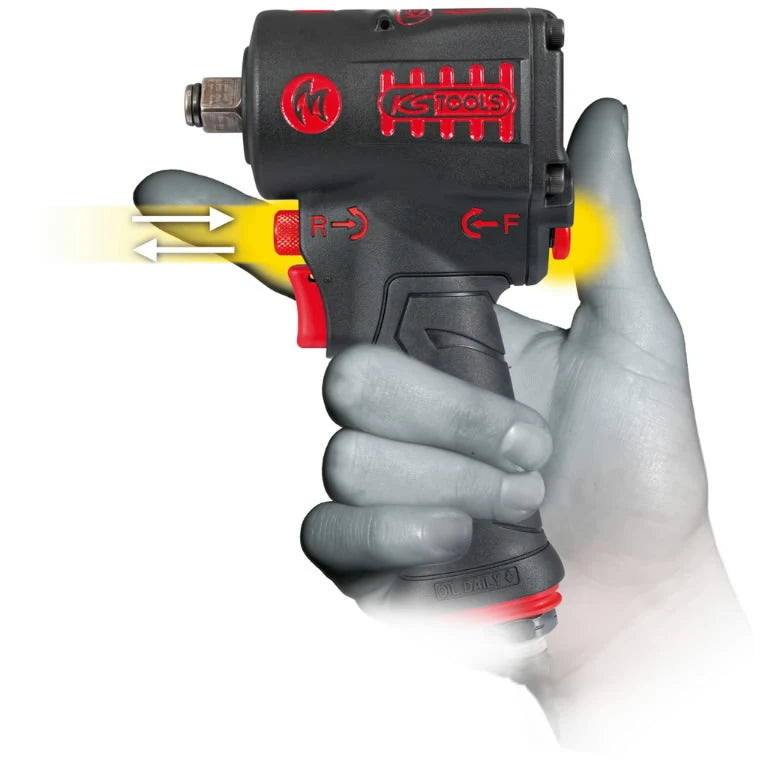

with practical clockwise and anticlockwise switch
easy operation

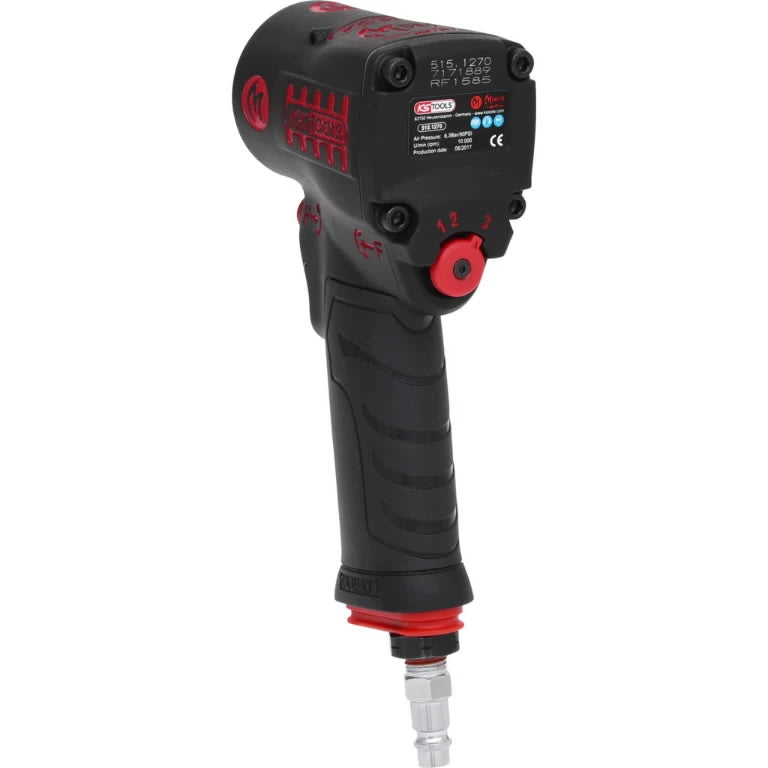

3 stage torque adjustment
high performance industrial jumbo mechanism
long service life
cold insulated handle
includes 1/4" coupling connector
ultra light Aluminium housing
PROPERTIES
Material1:aluminium
Operating Mode:pneumatic
Packaging width, mm:186
Packaging length, mm:210
Weight [g]:1340
Noise performance level (dbA):113
Noise pressure level (dbA):102
max. Clockwise-torque3:3 = 965 Nm
max. Clockwise torque2:2 = 640 Nm
max. Tightening torque:1 = 270 Nm
max. Loosening torque:1390 Nm
Reccomended torque:615 Nm
Square drive:1/2
Vibration acceleration:< 9,18
Connection thread:1/4"PT
Measuring uncertainty vibration acceleration:1.24
Air consumption in l/min:135
No Load current rpm:10000
Width B:95
Total length L in mm:190
Drive in imperial:1/2
Packaging contents:1
DIN EN ISO 28927-2
max. Screw size:M 16
Handle:non-slip soft grip handle
Operating pressure:max. 6,3 bar
min. Tube diameter:3/8" - 10 mm
Packaging height, mm:76
