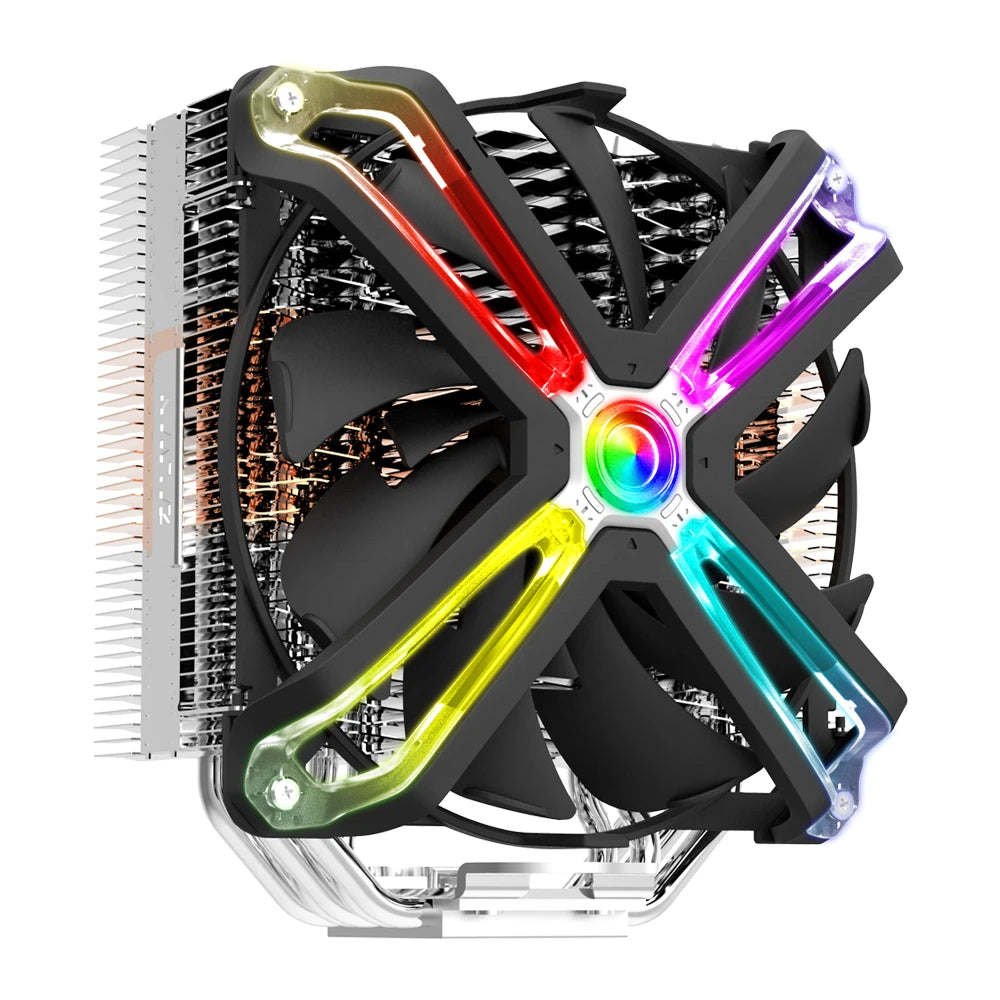

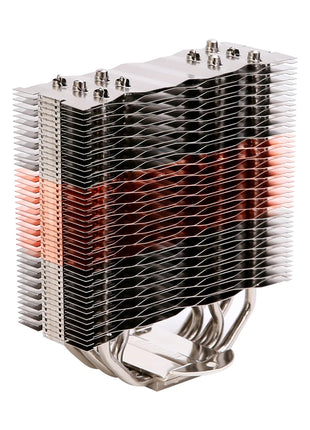

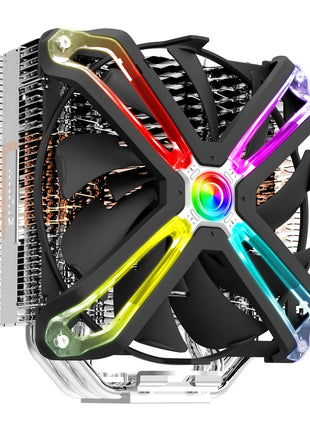

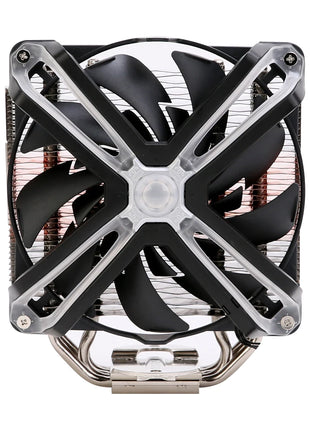

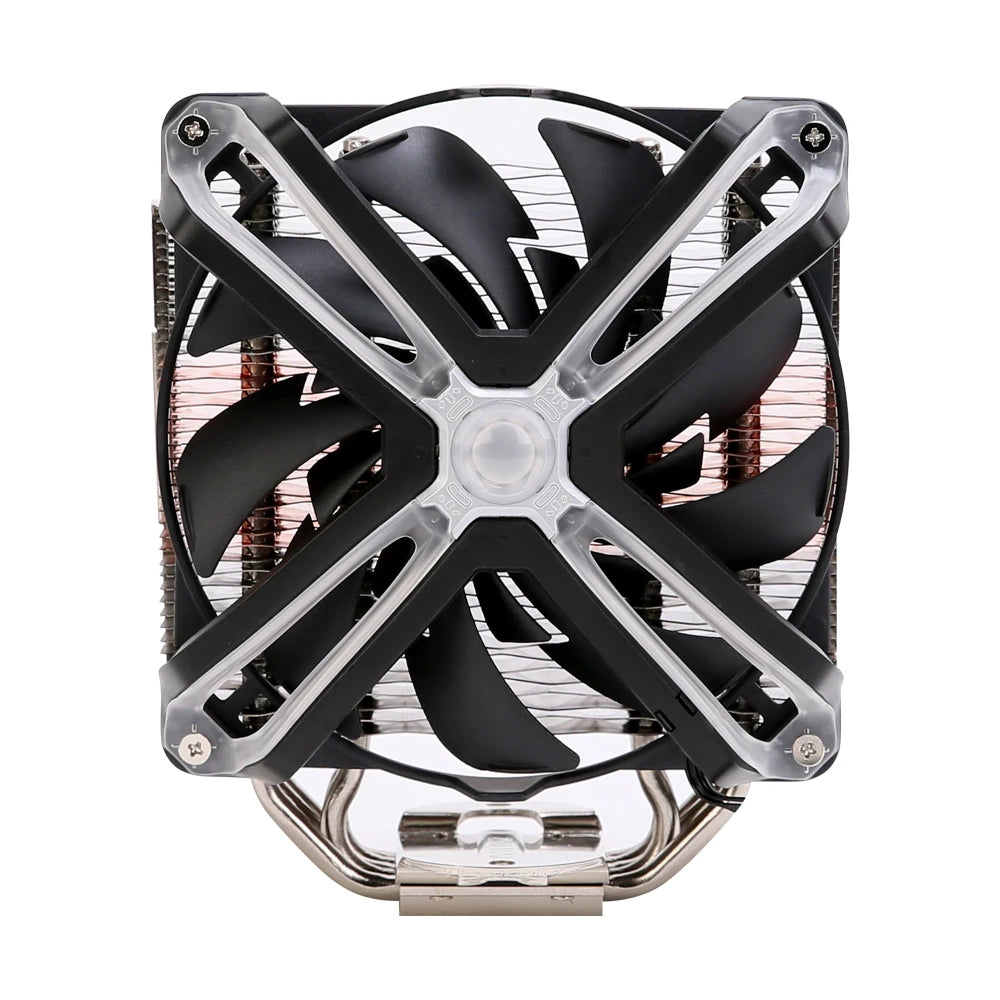

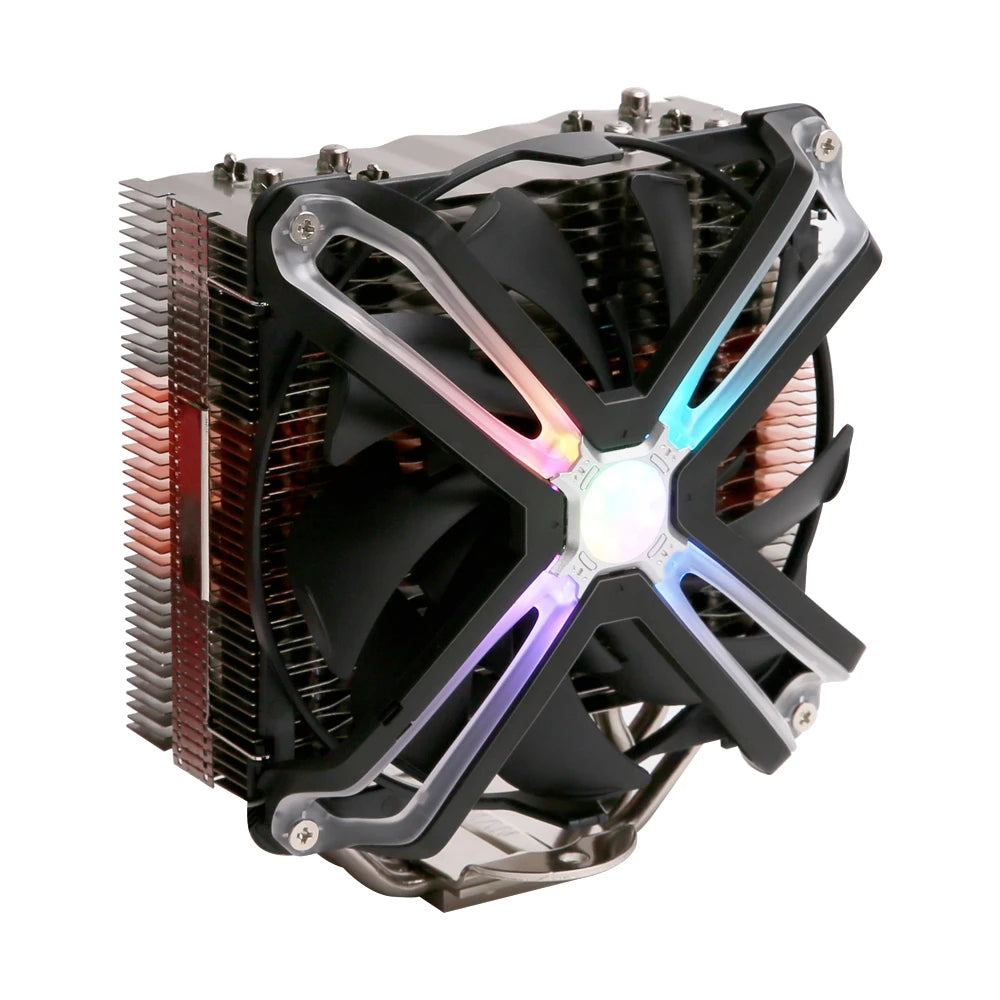

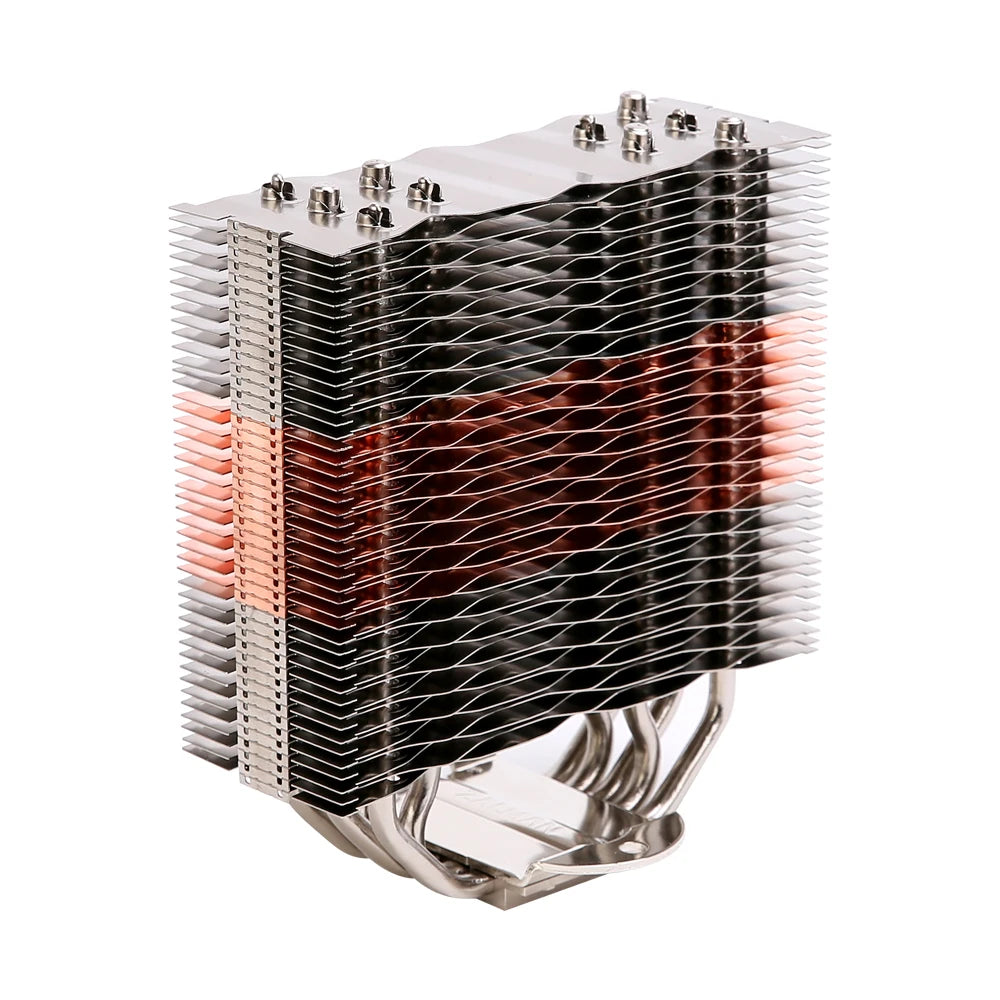

High-performance CPU cooler with 4D patented corrugated fin design. Application of RDTH (Reverse Direct Touch Heatpipe) for excellent performance with minimum heat resistance. The fan makes use of Zalman's patented Dual Blade impeller for increased CFM and reduced noise. Supports motherboard Addressable RGB sync (3pin).
| Performance |
| Suitable for: | Processor |
| Type: | Cooler |
| Supported processor sockets: | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+ |
| Rotational speed (min): | 800 RPM |
| Compatible processor series: | AMD A, AMD Ryzen, Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i7 Extreme Edition, Intel Core i9, Intel Core i9 Extreme Edition, Intel® Pentium® |
| Fan diameter: | 14 cm |
| Rotational speed (max): | 1500 RPM |
| Noise level (high speed): | 29 dB |
| Maximum airflow: | 61 cfm |
| Maximum air pressure: | 1.1 mmH2O |
| Pulse-width modulation (PWM) support: | Y |
| Bearing type: | Fluid Dynamic Bearing (FDB) |
| Design |
| Radiator material: | Aluminum |
| Number of fans: | 1 fan(s) |
| Colour of product: | Black, Grey |
| Illumination LED: | Y |
| Material: | Aluminium, Copper |
| Illumination colour: | Red/Green/Blue |
| Fan connector: | 3-pin + 4-pin |
| Number of heat pipes: | 5 |
| Power |
| Rated voltage: | 12 V |
| Thermal Design Power (TDP): | 200 W |
| Weight & dimensions |
| Width: | 100 mm |
| Depth: | 140 mm |
| Fan dimensions (W x D x H): | 140 x 140 x 26 mm |
| Weight: | 700 g |
| Height: | 160 mm |
| Packaging content |
| Mounting kit: | Y |
| Number of screws: | 4 |
| Screws included: | Y |
| Other features |
| Thermal grease: | Y |
| Fan rated voltage: | 5 - 12 V |
